Real Cable RC14IR

Others

3 290,-

(maloobchodní cena)

Basic information

Infrared extender & extension box

> Control 4 devices, and more (up to 8) thanks to the wide diffusion emitter design.
> Frequency range from 20kHz to 60kHz. Supports all devices on the market, except B&O.
> One receiver for horizontal position, with wide angle IR reception. Up to 8 m in +/- 45° angle.
> Possibility to add 6 more devices by using extension box RC06IR (optional). This extension box doesn’t need any power supply and is connected to the RC14IR through a CAT5 Ethernet cable up to 250 m maximum length. Perfect for multiroom uses.

Parameters

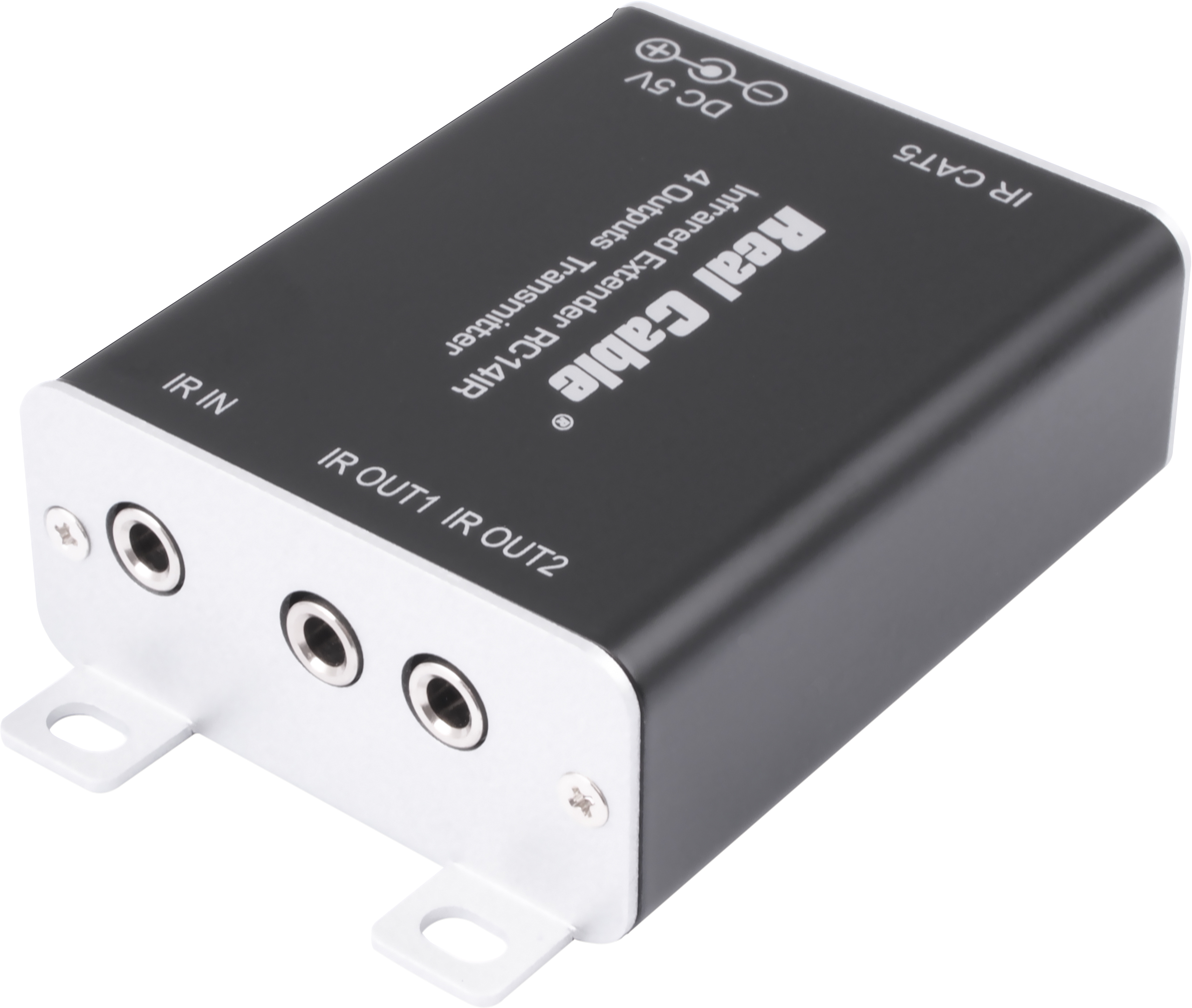

Main unit RC14IR

• 1 x 5 V DC power socket
• 2 x Jack for IR emitters
• 1 x Jack for IR receiver
• 1 x RJ45 for RC06IR extension box (optional)
• Dimensions : 62 (L) x 50 (P) x 23 (H) mm
• Weight : 78 g
• Mounting size : 70.5 x 32 mm

IR Receiver

• Reception range : 8 m
• Reception angle : +/- 45°
• Cable’s length : 2 m
• Dimensions : 31 (L) x 31 (P) x 14 (H) mm

IR Emitter

• Transmission range : +/- 50 cm
• Transmission angle : 90°
• Cable’s length : 2 m
